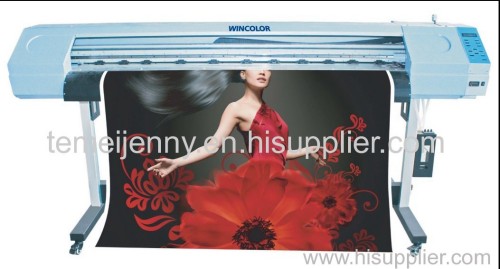

1.6m eco-solvent printer/ outdoor printer
Payment Terms: |
T/T,WU |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
wp5-160E
Production Capacity:
50 pcs/ week
Delivery Date:
15days
Type:
Inkjet Printer
Usage:
Bill Printer
Means of Transport:
Ocean
Packing:
wooden box
Plate:
Gravure
Color & Page:
Multicolor
Brand Name:
Win color
This printer adopts The fifth generation micro piezoelectric print head, which can print out in high resolution real 1440 dpi, fast speed, 15 sqm,
Feature :
1, Apply imported THK lead rails which works more stable , has long lasting working life , and with an Auto cutting system . |
2, Japanese bidirectional Motor which are more precise, linear decoding technique, less errors. |
3, It adopts Epson DX5 print head , which has 8 row holes, Each row has 180 nuzzles and total nuzzles are more than 1440 nuzzles. |
4, Vairable dropping technology, Smallest ink droplet is 3.5pl , and the biggest one is 12pl, Giving expression to perfect printing quality . |
5, Particular two dimension eclosion functions ans waved eclosion can remove banding during printing . |
6, It has the most advanced system which can clean print head automatically . |
7, Supporting multi printing mode and speed of 15sqm/h can be reached . |
8, Individual eight ink boxes make sure large area outputting at fast speed |
9, Any part of this printer can be maintanced , we own the mould of them. |
Product Specification:
Specfication |
Print Tech | 5th EPSON Piezoelectric continuous drop-on demand |
Ink | Eco-solvent ink |
Color Mode | double 4 color (C.M.Y.K.) |
Nozzle Linement | (180×8)×1 head |
Ink supply | Shutter type |
Paper Feeder | Several wheel press paper |
Printing Media | self-adhesive paper, mesh fabric, textile, PVC flex banner, Self Adhesive Vinyl , paper, fabric etc |
Paper Cutting | Manual / Auto cutting |
Max Media Width | 1650mm |
Max Print Width | 1600mm |
Min Print Width | 5mm |
Media Diameter | 2 inch×3 inch |
Media Type | Single paper(front feed), Roller(back feed) |
Media Weight | 40kg |
Connect | USB2.0/Hi USB |
Memory | 128M |
Take Up | optional |
Language | standard |
Power Working | 100W |
Power | AC100-120V/ AC220V-240V, 50-60Hz |
Standby | 40W |
Noize | 50dB |
Working temperature | 20-32degree, huhidity 40-60% |
Machine Size | 2380×750×1250mm |
Machine weight | 150kg |
